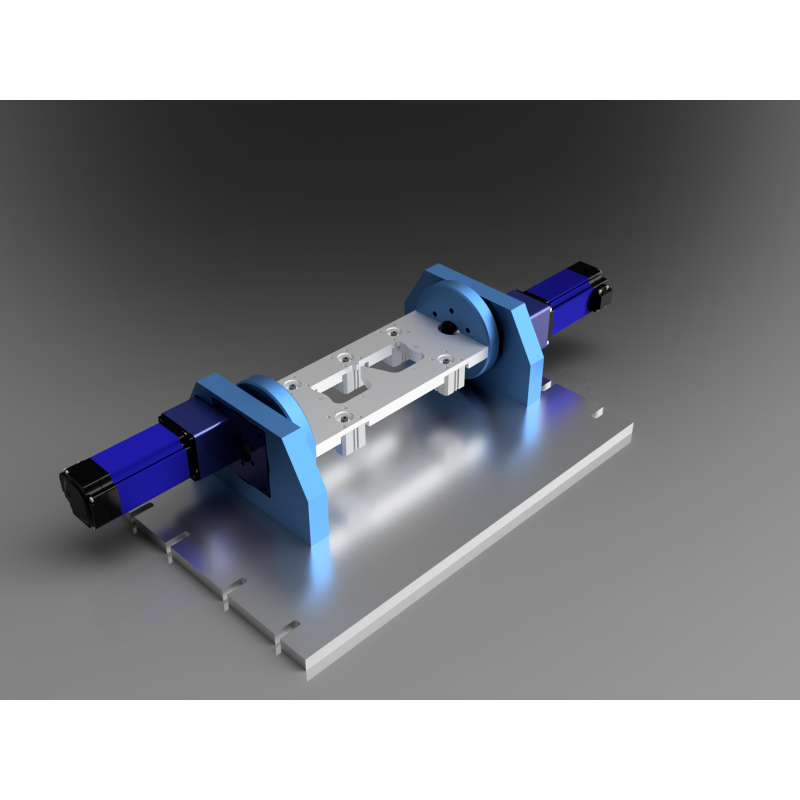

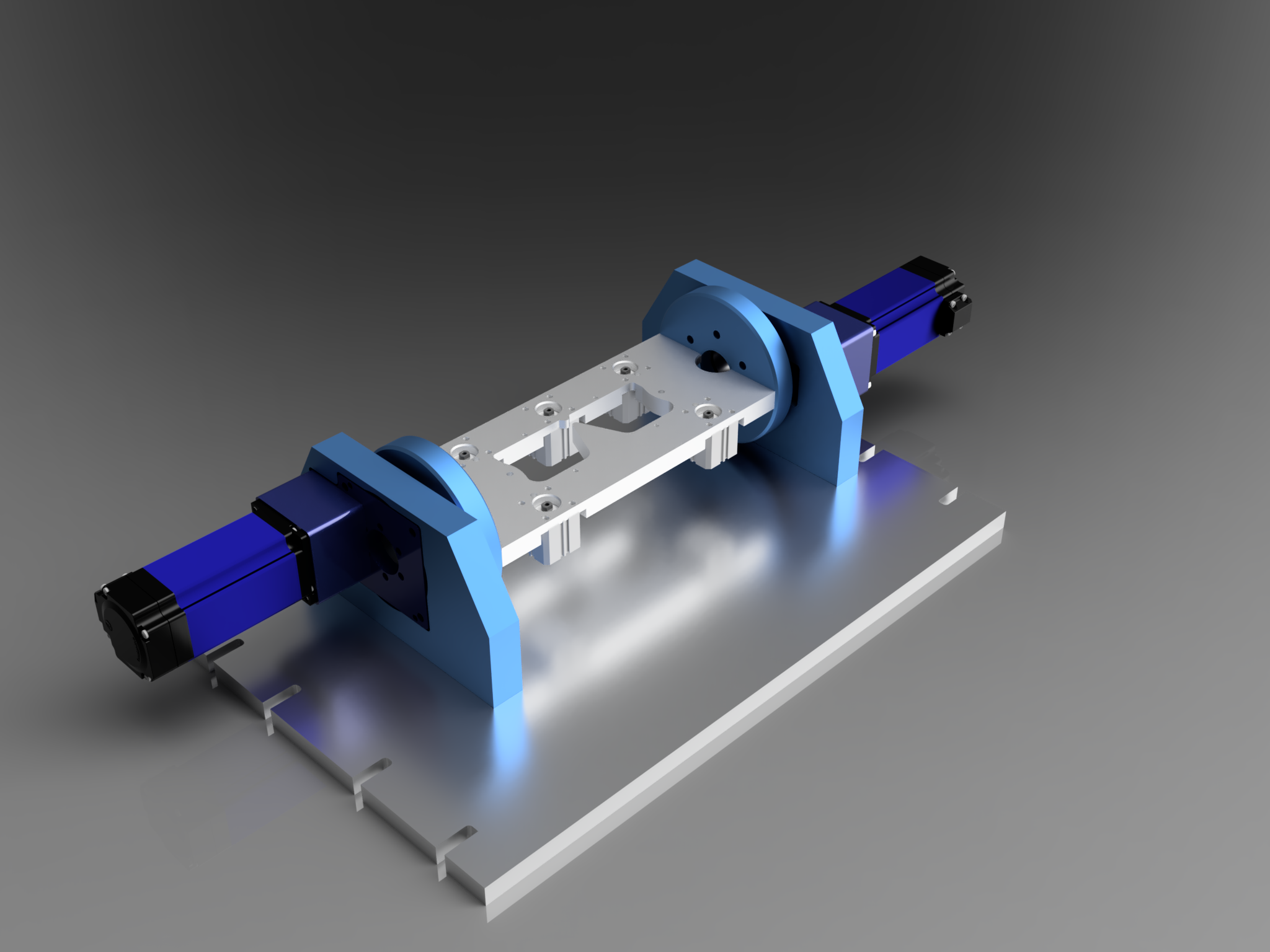

Rotary axis specially designed for making glasses.
Fits all of our CNCs
Includes the 5-point acetate labs pneumatic clamping system. (Minimum 5 bar compressor required)
Rotation ±180°
Counter Torque: 60nm. (The counter torque makes it possible to oppose the cutting force induced by the X Y Z axes)
Repositioning tolerance: 5 arcsec
Step value: 0.18°
• 0°requested. 0° obtained
• 20° requested, 19.98° Obtained: 111.11*0.18° in theory. That is 111 steps of 0.18° -> 19.98°
• 90° requested / 90° obtained. (500 ps of 0.18°)
Rotation speed: 500°/min
Non-contact referencing sensor allowing easy finding of the horizontal.
2x Servo motors NEMA 23 60v 3nm. - Harmonic reducers 1/10
Contact us for integration into your controller box.
Delivered with the postprocessor for fusion360 as well as a 4-axis program model (SoliidWorks with supplement) and 4 hours of online training
Continuous 4-axis machining or rotation of the A axis and static XYZ, A machining.
Rotation speed
Cutting from inside and outside
The rotating axis is very useful for making branch junctions with the tenon inclined according to the pantoscopic Face/Branch angle.
Supplied with the adapted FUSION 360 or SolidWork post-processor and 4 hours of remote training
