CUBO-MACH3 | 3 Axis CNC Controller | Made in Spain

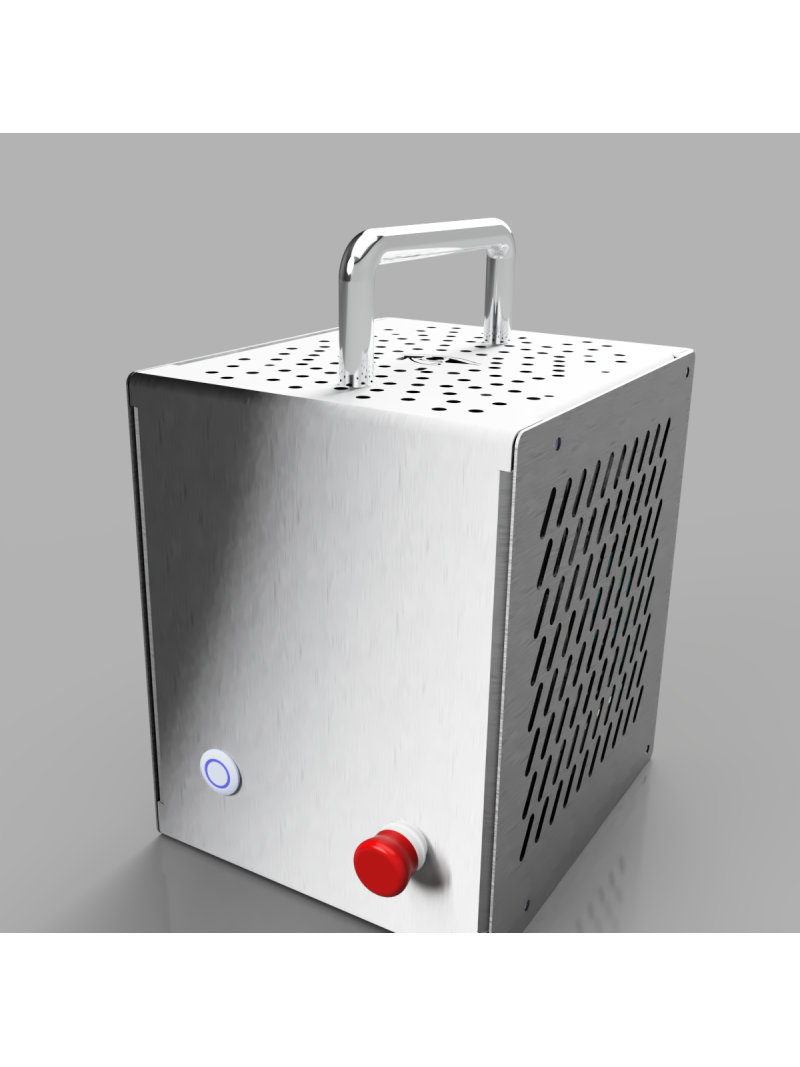

CUBO-3
Gets its name from its cubic appearance.
Designed by us with reliable, proven and interference-free electronics.
A compendium of technology in a small space? with optimal and silent ventilation.
The cube integrates all the control management of your CNC on 3 Axes.
Controls of stepper motors, cutter probe,...
€650.00
CUBO-3
Recibe su nombre de su apariencia cúbica.
Diseñado por nosotros con electrónica confiable, probada y libre de interferencias.
¿Un compendio de tecnología en un espacio reducido? con una ventilación óptima y silenciosa.
El cubo integra toda la gestión de control de su CNC en 3 Ejes.
Controles de motores paso a paso, sonda cortadora,...
OUTPUTS :
Control of X YZ Axes for 24v 5A - 120w stepper motors
Spindle motor phase dimmer up to 2.200w TRI 220v
INPUTS :
Emergency stop button on the box
Reading of the 3 referencing sensors on the XYZ axes (HAALL-effect (electromagnetic contactors)
Reading of the Strawberry height sensor (Three-contact card: +24 - Ground - Signal)
To connect to your PC under Windows XP to Window 11 in USB or ETHERNET 1GB
The Box is closed and sealed cannot be modified by you without loss of warranty
Voltage:
220v 50Hz - 12A
(We can provide in 110v. ask us by message before ordering)
Dimensions:
Lxwxh: 225x200x265mm
Net weight: 4Kg
CNC input/output connectors by DIN plugs
CUBO <-> PC connection. via 1GB Ethernet or USB 2.0
