CNC Hobby XK-600-PRO



Our vision of the Hobbyist CNC

Kit DIY  or Assembly by us

EN STOCK

SEND IN 24H

Machine controlled either by the X-COMMAND console or by Mach3 (PC required)

Unlimited Mach3 license included in the kit with CUBO-X

X-Command

Solid Works

MACH3 ARTSOFT CNC Fusion360 VCArve VCarve Pro

€1,295.00
5 1
,
5/ 5
Assebly
XYZ
Spindle
Controller
Quantity

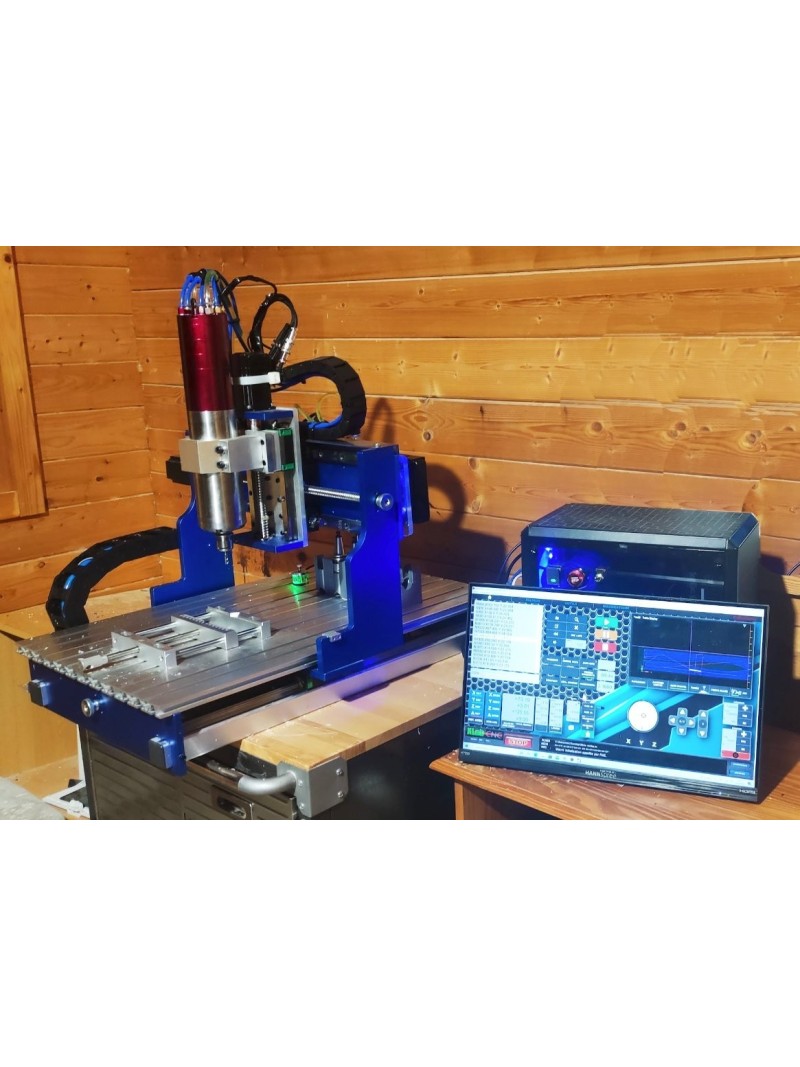

Modèle présenté : XK-600-PRO + XYZ Servo + Broche ATC
 MAX Servo Control
Accessoires optionnels :
Palpeur de Fraise - MAGASIN OUTILS - Etau

Ball screw ø16mm in high quality steel | Class C1 & 20mm Linear Guides on High Precision Ball Cage



Receive the machine in a KIT to assemble yourself or completely assembled.

If you feel like an assembler, you will receive the mechanical part of the machine in two parts

(The lower tray completely assembled and separately the upper gantry to be fixed on the lower mobile carriage)

Then all you have to do is place the wiring and the various electronic elements ordered.

All accessories, wires, screws, etc. are included so that you can easily assemble them.

You can choose in the kit not to order certain elements that you would have already (or ordered elsewhere)

Whatever the kit, electromagnetic XYZ referencing sensors are provided.

All shielded cables and connectors are provided.

Even as a kit, the machine is delivered pre-assembled in two parts, pre-adjusted with all the necessary hardware.

All that remains is to assemble the gantry on the frame. The machine will be mechanically assembled.

LeLess motors and electronics are delivered in a separate package with the cables and everything necessary.

All our kits include the XYZ limit stops used for referencing the origin by electromagnetic contactor.

(Registration accuracy, in high precision mode and re-positioning ±0.002mm - 0.01mm in standard registration mode)


Non-contact origin search

With the order of the kit, you will have access to a series of videos on Youtube to help you in the different stages of assembly and wiring.

No need to be an experienced electronics technician, just follow the steps.

A machine is assembled in about 8 hours.

We also offer you 4 hours of tele-assistance to answer any questions you may have.

Only machines with conventional stepper motors are available as a kit.

The sets with ServoMotors being more complex in the adjustment and the technical installation are assembled by us.

We have a period of 2 weeks to assemble and adjust the machine according to the characteristics ordered.

Machine assemblée

Assembled machine

Machine assembled mechanically in less than 30 min

It remains to carry out the wiring with method, with the shielded wires provided.

Kit delivered in two separate parts.

The lower X carriage as well as the upper Y and Z carriages are already preset.

Kit livré en 2 parties

Kit delivered in two separate parts.

The lower X carriage as well as the upper Y and Z carriages

are already preset.

Informations Techniques

Area  X*Y 415x700mm
   Stroke X 185mm
   Stroke Y 585mm
   Stroke Z 1450mm
BALL SCREW ø 16mm x 5mm - Acier
Positioning accuracy ±0,002mm
Réf XYZ Capteur Electromagnétique sur chaque axe en fin de course
Bare machine weight  80 Kg

• COMPOSE YOUR MACHINE ON REQUEST

CHOICE OF XYZ FEED MOTORS

 Stepper 3A 24v. 2nm

(Not recommended if you want to work with metals)

This solution is adapted with our controllers "CUBO Mach3" and "CUBO MACH3 ATC"

If you are not looking for displacements beyond 4000mm/min.

It is the most economical solution that equips 98% of the small Hobby CNCs on the market.

The more than substantial torque will allow you to cut all types of materials.

Stepper 4.2A 24v. 3nm

Torque, fast and economical motors

This solution is adapted with our controllers "CUBO Mach3" and "CUBO MACH3 ATC"

If you are not looking for displacements beyond 5500mm/min.

It's the best solution.

The more than substantial torque will allow you to cut all types of materials.

CLOSED LOOP SERVO MOTOR 48v - 5nm

The professional solution!

Technology derived from industrial CNCs.

A controller placed on the motor analyzes in real time the need for torque, and the position on the axis and automatically regulates the intensity of the signals, as well as the position requested.

No loss of steps possible.

Travel speeds up to 10,000mm/min allowing high-speed machining

Highly recommended for CNCs with tool changers and 600 & 900mm machines

These motors require our specific controller "MAX-SERVO-CONTROL"

You cannot order a kit assembly machine with these motors.


Speed 10.000mm/min



SPINDLE CHOICE:

You can equip our CNC with any type of spindle.

We distribute two 2.200w spindles with liquid or ventilated cooling.

Spindle 400HZ 2200w 24.0000 Turns Min.

Air cooling

Collet Holder ER20

The easiest to assemble.

Strongly discouraged in metalworking

Spindle 400HZ 2200w 24.0000 Min Turns

Liquid cooling

Collet Holder ER20

Ideal for long machining, the spindle is cooled by a liquid passing through it.

For kit assembly, you will need to use a cooling system:

  • By outsourced 'aquarium' type pump Pump available here
  • By outsourced 'aquarium' type pump Pump available here


Spindle with automatic tool change

2000w 24,000 min rpm ISO20

The spindle head is hollow with a pneumatic tie rod system, allowing the cutter holders to be interchanged.

The tools are with an IS020 Base cone.

Spindle with liquid cooling.

The PC Gamer type liquid cooling kit is integrated to be positioned on the back of the portico. .

You can directly buy some conical ISO20 cutters. or go through ISO20-ER16 milling doors

Our Mach3 solution makes it possible to manage up to 10 locations in a magazine with Horizontal or Vertical loading, the cutters beyond the number 10 will be requested in 'manual' mode, that is to say that the machine puts itself in pose during the machining requires the next cutter, you expel the current cutter holder by pressing a button on the screen and place the new one....

The number of strawberries possible even in ATC is therefore much higher than the only 10 present in the store ....

For more space on the worktop, you can remove the tool magazine (and only work with cutters referenced from 11....

Our spindles are assembled with a frame imported from Asia, and wound in Hungary according to our specifications. 24 months warranty.

The system with X-Change tool changer is deposited.

The warranty does not cover machining on metal for the air-ventilated spindle

The warranty does not cover starting without the presence of a cutter holder in the spindle with tool changer. (Software protection to prevent dry start)

CHOICE OF CNC CONTROLLER: (facultatif)

If you already have a CNC controller corresponding to the machine ordered, simply connect it to your new machine.

We offer 3 types of control:

X-COMMAND
X-COMMAND

The simplest solution to use your machine without having to connect a PC to it

Insert the USB key into the NCH02 mini counter console and launch your G-Code

We programmed the desk ROM according to our own algorithms.

The console is even pre-programmed for a fourth axis (Available as an accessory)

Not compatible with models with automatic tool change Possible with Servo-Motors  - Ask for price -

CUBO-X

CUBO-X

The MACH3 all in 1 USB controller

Takes its name from its cubic appearance.

Designed by us with reliable, proven and interference-free electronics.

Fully assembled in Spain by us

A compendium of technology in a small space? with optimal and silent ventilation.

The cube integrates all the control management of your CNC on 3 Axes.

(easily expandable for a fourth axis)

Controls of stepper motors, cutter feeler, part tracker (EDGE FINDER) ...

Not compatible with servo motor models

Internal USB controller -

Output management:

Control of X YZ Axes for 24v 5A - 120w stepper motors

Spindle motor phase dimmer up to 2.200w TRI 220v

Entry management:

Emergency stop button on the box

Reading of the 3 referencing sensors on the XYZ axes (HAALL-effect (electromagnetic contactors)

Strawberry height probe reading (Three-contact plug: +24 - Ground - Signal)

Connection details

To connect to your PC under Windows XP, WINDOW 10 or Window 11 via USB

The Box is closed and sealed cannot be modified by you without loss of warranty

Voltage:

220v 50Hz - 12A

Dimensions:

Lxwxh: 225x200x265mm

Net weight: 4Kg

CNC input/output connectors by DIN plugs

CUBO <-> PC connection. via 1GB Ethernet or USB 2.0


MAX SERVO CONTROL | MACH3

The MACH3 controller for servo motors

Designed by us with reliable, proven and interference-free electronics.

A compendium of technology in a compact and insulated box, with optimal and silent ventilation.

The controller integrates all the management of the controls of your CNC under servomotors on 3 Axes (or more on estimate) as well as the management of the ATC cutter changer.

Controls of stepper motors Closed loop servo motor, high precision cutter probe,...

Output management:

Control of X YZ Axes for closed loop servo motors 60v 6A - 360w each

Spindle motor phase dimmer up to 2.200w TRI 220v

Control opening Door closing ATC cutter

2 Outputs controlled by relays for misting, and chip blowing.

Entry management:

Emergency stop button on the box

Push button on the box to open the cutter holder manually.

Reading of the 6 referencing and limit sensors on the XYZ axes (HAALL-effect (electromagnetic contactors)

Reading of the Strawberry height sensor (Three-contact card: +24 - Ground - Signal)

XHC-P Ehternet controller for Mach3 2.000Khz ROM modified by us.

To connect to your PC under Windows XP to Window 11 in ETHERNET 1GB

The Box is closed and sealed cannot be modified by you without loss of warranty

Voltage:

220v 50Hz - 16A

Dimensions:

L:380mm W: 250mm H: 370mm

Net weight: 12Kg

Controller <-> PC connection. via Ethernet 1GB Minimum..

Fully assembled in Spain by us

Disponible en accessoires :

R

Quatrième Axe Rotatif


Etau d'usineur


Palpeur de mesure d'outils

We disclaim all liability and provide no technical assistance for parts installed on the machine which we would not be the supplier. (Purchase of a spindle, advance motors on other websites,...)

Data sheet

Tray surface
600x400
