Upgrade your setup process with the GP800 wireless 3D probe. Set your work offsets (X, Y, Z) with exceptional repeatability ($\leq 0.01\text{ mm}$) and automate probing cycles seamlessly in Mach3 and Fusion 360 using exclusive X-maquinas integrations.
Upgrade your setup process with the GP800 wireless 3D probe. Set your work offsets (X, Y, Z) with exceptional repeatability ($\leq 0.01\text{ mm}$) and automate probing cycles seamlessly in Mach3 and Fusion 360 using exclusive X-maquinas integrations.

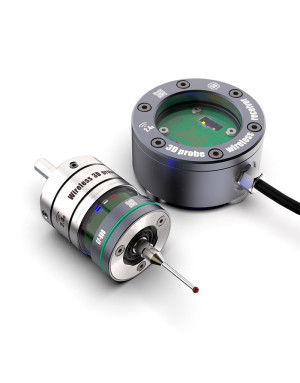

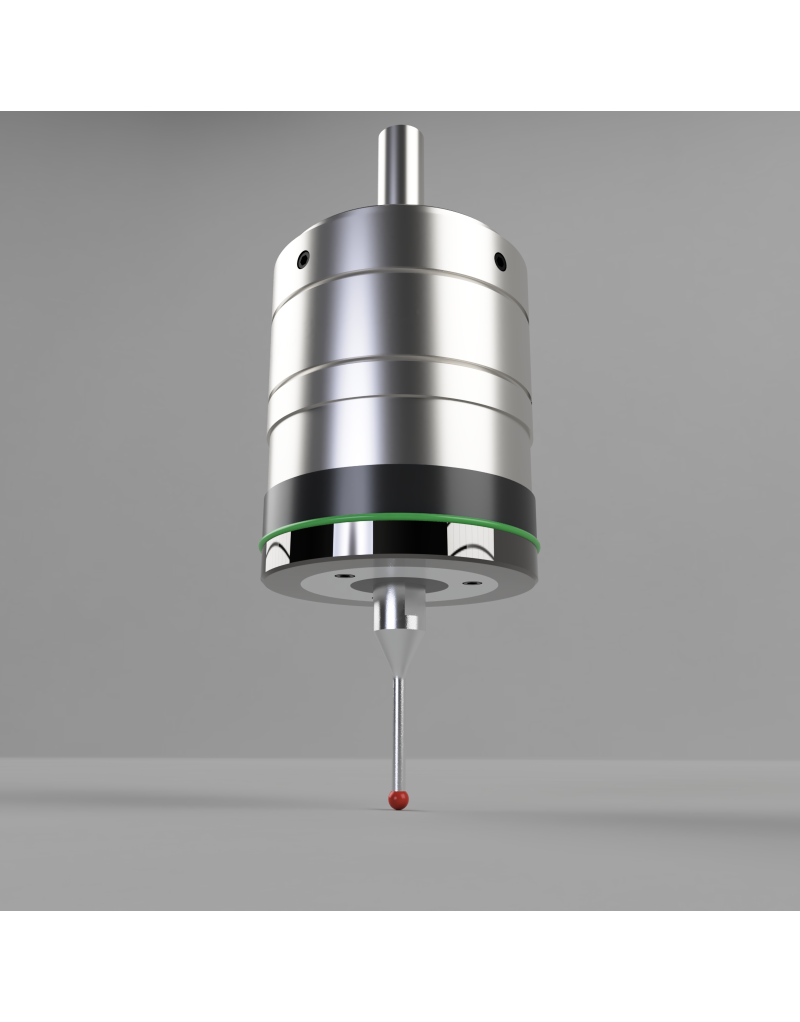

The GP800 is a wireless (Bluetooth) 3D touch probe for part centering and measurement. It allows you to set your work offsets (X, Y, Z) and measure geometries with outstanding repeatability, eliminating any risk of cables winding around the spindle.
Unlike standard versions, we supply this probe with a dedicated Mach3 Screenset and probing wizard. This custom interface gives you full control over the tool:
Real-time Monitoring: Check the probe’s battery level directly on your control screen.
Diagnostics: Manage connection errors and Bluetooth signal status effortlessly.
Probing Macros: Simplified routines for finding centers, edges, angles, and surfaces.
Save valuable time using the included Fusion 360 post-processor.
Integrate smart probing routines directly into your machining programs. The generated G-code automatically commands the GP800 to check part alignment or update work coordinate systems (WCS) prior to machining.
Technology: Wireless (High-stability Bluetooth).
Probing Directions: $\pm X, \pm Y, +Z$.
Repeatability: $\leq 0.01\text{ mm}$.
Power Supply: Rechargeable lithium battery (extended battery life).
Compatibility: Mach3 (via provided custom screenset) and Fusion 360 (via provided post-processor).

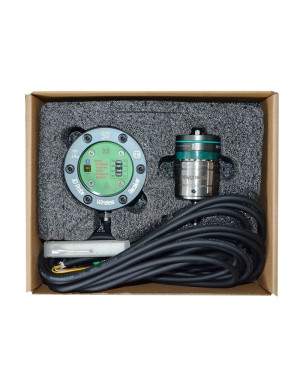

GP800 Bluetooth 3D Probe.
Wireless receiver.
Files/License for custom Mach3 Screenset.
Optimized Fusion 360 post-processor.
X-maquinas installation and setup guide.
Upgrade to Machining 4.0: eliminate manual set-up errors and secure your production workflow.
